Product Title:

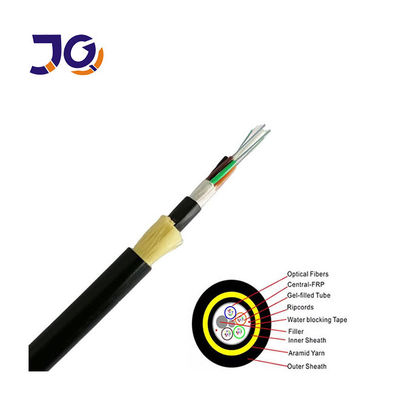

Double Jacket ADSS Aerial Fiber Optic Cable, Single-Mode, Aramid Yarn Strength Member
Description:
Double Jacket ADSS cable is fully non-metallic and safe for aerial installation on high-voltage lines without grounding. Its dual-sheath design offers extra mechanical protection and durability.
Features:
-
Gel-filled loose tubes for fiber protection
-
FRP central strength member and aramid yarn for high tensile strength
-
Double jacket (PE or AT) for enhanced durability and anti-tracking
-
UV, moisture, and weather resistant
-
Self-supporting, stable transmission, long service life
-
Customizable fiber count and span length
Applications:
Telecom backbones, utility networks, smart grids, and rural broadband; suitable for short- and long-span aerial installation.
Certifications:
ISO9001, RoHS; 100% optical and mechanical tested
Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8 |
85 |
95 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0 |
88 |
98 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5 |
98 |
108 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0 |
122 |
135 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0 |
128 |
138 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|
Details picture shows
single jacket ADSS fiber cable

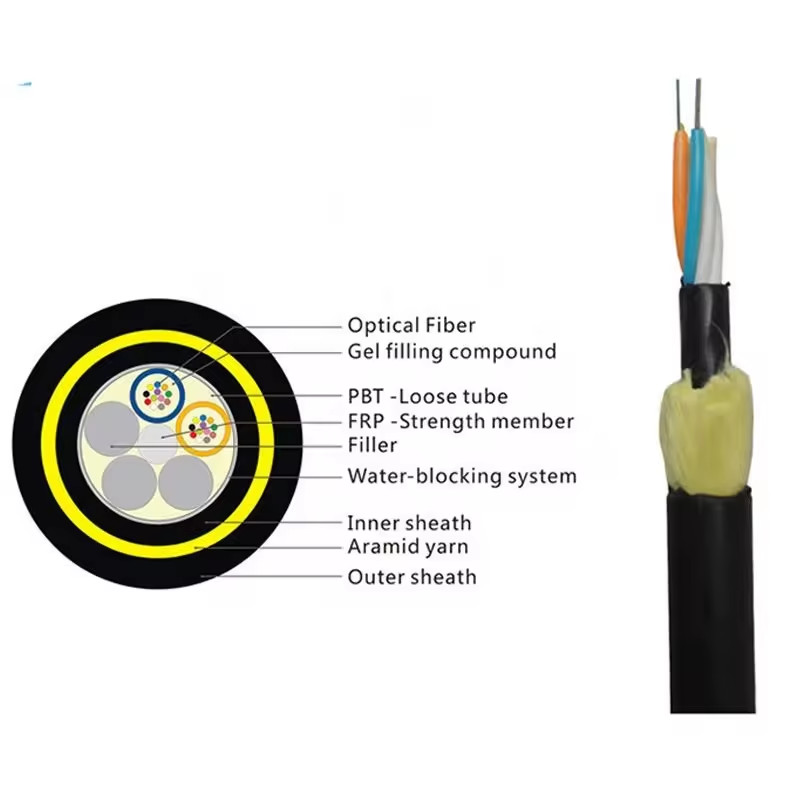

double jacket ADSS fiber optic cable
Packing:
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a direct manufacturer in Guangzhou with 10+ years’ experience in fiber optic cables, FTTH drop cables, patch cords, and accessories.
Q2: How do you ensure quality?
A: All cables undergo 100% optical and mechanical testing. Free samples are available for verification.
Q3: Can I place a small order?
A: Yes, small and trial orders are supported.
Q4: Lead time?
A: Typically 3–7 working days, depending on quantity and customization.
Q5: OEM & customization?
A: Yes, we can print logos, customize packaging, fiber counts, sheath color, and length.
Q6: Are raw materials certified?
A: Yes, all comply with ISO9001, RoHS, and CE standards.
Q7: Warranty?
A: 10-year warranty with lifetime technical support.
Q8: Technical support?
A: Yes, we provide online guidance, installation manuals, and blowing parameter recommendations.
Q9: Export documentation?
A: Yes, we provide CO, CE, RoHS, and test reports for customs clearance.
