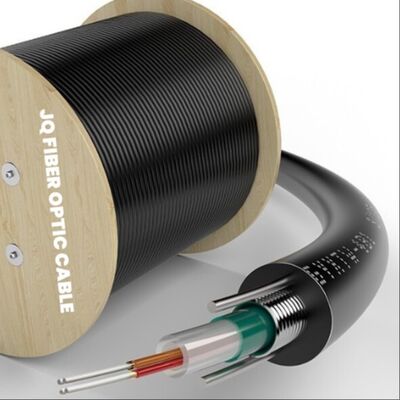

GYXTW Aerial Armored Fiber Optic Cable 2–24 Core Outdoor Single Mode Steel Tape Cable
Product Introduction

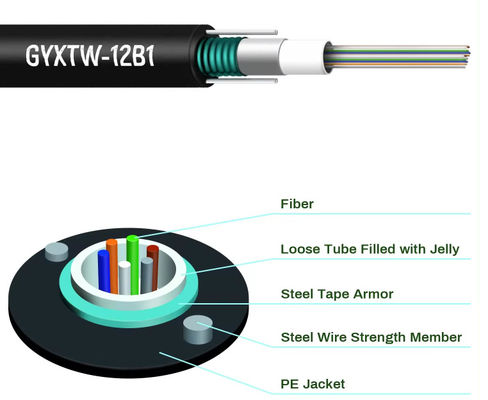

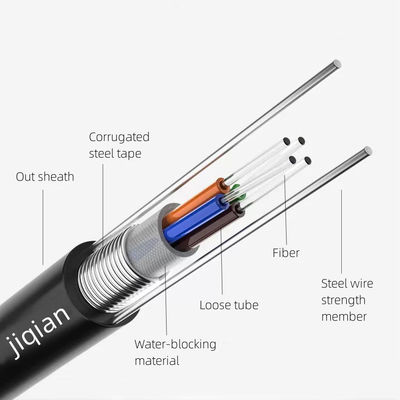

GYXTW fiber optic cable is a compact outdoor armored cable designed for aerial and duct installations. It features gel-filled loose tubes, PSP steel tape armoring, and dual parallel steel wires for enhanced tensile strength and moisture protection, ensuring stable long-distance communication performance.
Key Features
Applications
Optical Fibre Performance:
| Type | Attenuation(+20℃) | Bandwidth | Numerical aperture | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | ||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
Technical Performance
| Model |
Fiber count |
Tube count |
Filling rope count |
Weight (kg/km) |
Tension Long/Short term |
| GYXS/GYXTW-2~12Xn | 2~12 | 82 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-14~24Xn | 14~24 | 127 | |||
| GYXS/GYXTW-2~12Xn | 2~12 | 124 | 1000/3000 | ||
| GYXS/GYXTW-14~24Xn | 14~24 | 147 |
Environmental Characteristics:
• Transport/storage temperature: -40℃ to +70℃
Application
• Outdoor Duct, overhead
FAQ
1. What fiber types are available for GYXTW cable?
It is commonly available in single-mode G652D fiber, with core counts from 2 to 24 cores.
2. Is GYXTW cable suitable for aerial installation?
Yes, it is designed for aerial and duct installations with strong tensile performance.
3. Does the cable provide water protection?
Yes, the gel-filled loose tube and steel tape structure offer reliable moisture and water blocking.
4. What is the function of the steel tape armor?
The PSP steel tape improves crush resistance and protects the cable in outdoor environments.
5. What applications is this cable mainly used for?
It is widely used in FTTH networks, telecom access networks, and outdoor data transmission projects.
