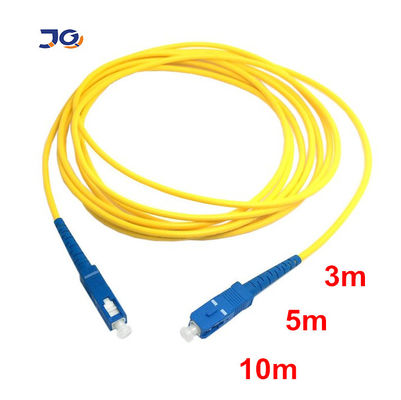

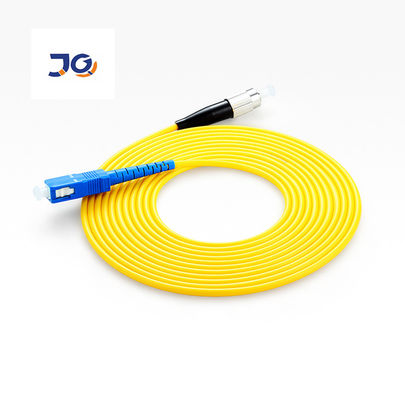

Simplex Duplex SC LC Patch Cord SM OS2 9/125 PVC LSZH Fiber Optic Cable
Product Features
OS2 9/125μm singlemode fiber for long distance high speed transmission
Available in simplex and duplex configurations
SC to LC connectors with PC UPC or APC polish options
Low insertion loss and high return loss for stable performance
Excellent repeatability and interchangeability
PVC or LSZH jacket for flexible indoor use
Application Scenarios
CATV and telecom network connections
Optical switches and transmission equipment
Optical transmitter and receiver interconnection
ODF and terminal box patching
Data center and enterprise fiber cabling systems
Optical Characteristics
| Mode | SM | MM | |
| Polish | UPC | APC | APC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB(1000 times mating) | ||
| Tensile Strengh | >10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB(+25+65 93 R.H.100 hours) | ||
Technical Data
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125 (Multimode) OM2&OM1 50/125,10G(Multimode)OM3 |
|
Cable |
Simplex,Duplex Φ3.0mm,Φ20mm,Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°&6°) |
|
Insertion Loss |
≤0.1dB(For Singlemode Master) ≤0.25dB(ForSinglemodeStandard) ≤0.25dB(ForMultimode) Tested by JDSRM3750 |
|
ReturnLose (Singlemode) |
UPC≥50dB SPC≥55dB APC≥60dB(typ.65dB) Tested by JDSRM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C° to 850 C° |
|
GeometryRequirement (Singlemode) |
Ferrule Endface Radius 7mm≤R≤12mm(For APC) 10mm≤R≤25mm(For Standard) Apex Offset≤30μm(For Master) Apex Offset≤50μm(For Standard) Under cut-50nmSU≤50nm Tested by DORCZX-1 |
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ
1. Are you a manufacturer or trading company?
We are a direct manufacturer with 10 years of experience in fiber optic cable, FTTH drop cable and patch cord production. Our factory is located in Guangzhou.
2. How do you ensure quality?
All products are fully tested before shipment. Free samples are available after price confirmation.
3. Do you accept small orders?
Yes, small and trial orders are supported.
4. What is your delivery time?
Normally 3–7 working days depending on order quantity. Shipment is arranged promptly after payment.
