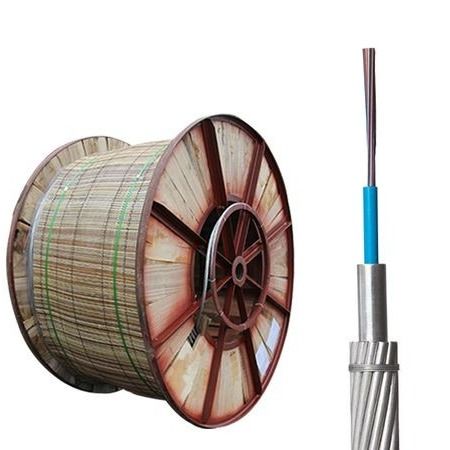

OPGW Fiber Optic Cable – Dual Function Overhead Ground Wire
Product Overview
OPGW (Optical Power Ground Wire) cables integrate optical fibers into the overhead ground wire of high-voltage transmission lines, providing both electrical grounding and fiber optic communication in a single cable. This dual-purpose design enhances system reliability, reduces infrastructure complexity, and lowers installation costs. The metal-reinforced construction ensures durability, high tensile strength, and resistance to environmental stress.
Key Features & Advantages
-
Advanced Fiber Protection: Stainless steel tubes with water-blocking compounds safeguard optical fibers from moisture and physical damage.
-
High Strength and Compact Design: Robust construction ensures excellent tensile strength and structural stability for harsh environments.
-
Minimal Electromagnetic Interference: Reduces signal interference from power grid currents, ensuring reliable data transmission.
-
Easy Installation: Compatible with standard ground wire specifications, suitable for both new builds and replacement projects.
-
Long-Distance High-Speed Transmission: Supports high-speed data over long distances with excellent environmental resistance to lightning, wind, and temperature variations.
Applications
Ideal for smart grid infrastructure, OPGW cables provide a reliable communication backbone integrated directly into power lines. They enable real-time monitoring, fault detection, and efficient data transfer, improving grid performance while reducing downtime and installation costs.
OPGW Fiber Optic Cable – Structure and Applications
Applications
OPGW (Optical Power Ground Wire) cables are used for power line communication, relay protection, and automatic control systems, installed alongside high-voltage transmission lines. They provide reliable fiber optic connectivity while maintaining electrical grounding and lightning protection.
Cable Structure

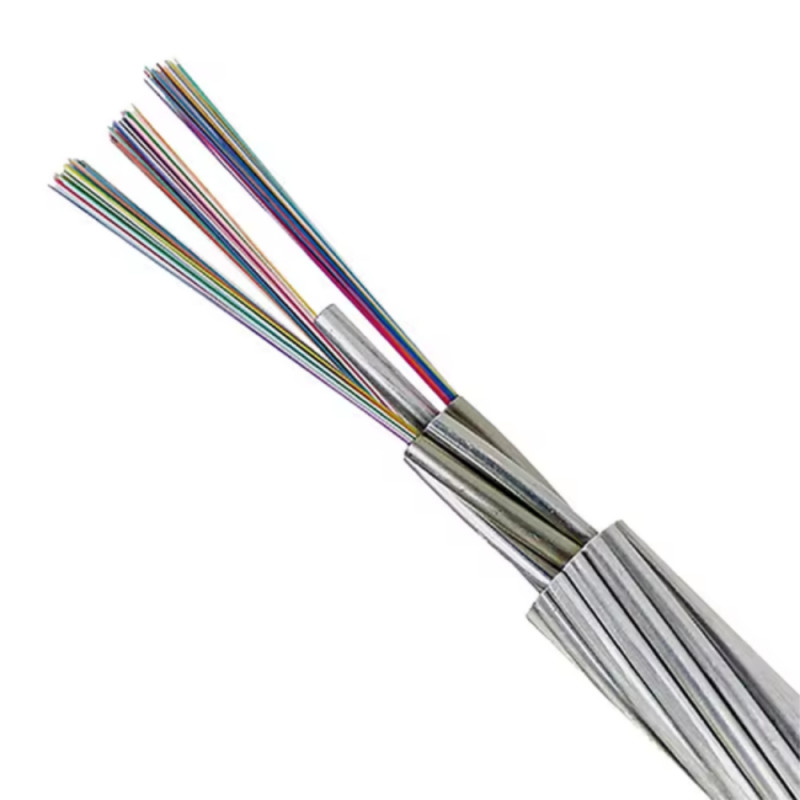

The stranded OPGW features two or three layers of aluminum-clad steel (ACS) wires, or a combination of ACS and aluminum alloy wires. This design ensures mechanical strength, electrical conductivity, and durability, meeting the requirements of overhead power lines.
Technical Specifications
-
Fiber Types: G652D, G655C, G657A1, 50/125, 62.5/125, OM3, OM4 (various options for different applications)
-
Fiber Core Count: Up to 96 cores
-
Voltage Range: Suitable for power lines up to 110 kV and below
-

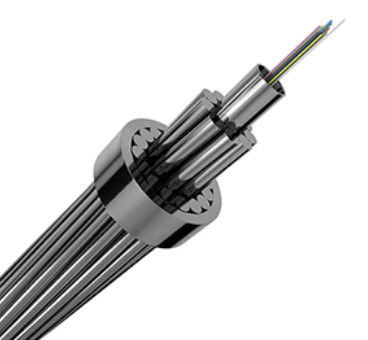

Design Highlights: Central stainless steel tube with aluminum covering for robust protection
Key Benefits
-
High fiber capacity for modern communication needs
-
Suitable for new and replacement overhead lines
-
Provides lightning protection by safely conducting short-circuit currents
-
Durable design for long-term outdoor performance
Parameter
OPGW with PBT Aluminum Tube
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| |
|
|
|
|
|
| OPGW-113(87.9;176.9) |
48 |
14.8 |
600 |
87.9 |
176.9 |
| OPGW-70(81; 41) |
24 |
12 |
500 |
81 |
41 |
| OPGW-66(79;36) |
36 |
11.8 |
484 |
79 |
36 |
| OPGW-77(72;36) |
36 |
12.7 |
503 |
72 |
67 |
OPGW Typical Designs of Stranded Stainless Steel Tube
Typical design for Double Layer:
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] |
24 |
12.6 |
381 |
55.4 |
62.9 |
| OPGW-110[90.0;86.9] |
24 |
14 |
600 |
90 |
86.9 |
| OPGW-104[64.6;85.6] |
28 |
13.6 |
441 |
64.6 |
85.6 |
| OPGW-127[79.0;129.5] |
36 |
15 |
537 |
79 |
129.5 |
| OPGW-137[85.0;148.5] |
36 |
15.6 |
575 |
85 |
148.5 |
| OPGW-145[98.6;162.3] |
48 |
16 |
719 |
98.6 |
162.3 |
Typical design for Three Layer:
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] |
28 |
20.15 |
1696 |
343 |
191.4 |
| OPGW-254[116.5;554.6] |
36 |
21 |
889 |
116.5 |
554.6 |
| OPGW-347[366.9;687.7] |
48 |
24.7 |
2157 |
366.9 |
687.7 |
| OPGW-282[358.7;372.1] |
96 |
22.5 |
1938 |
358.7 |
372.1 |
OPGW Typical Designs of Central AL-covered Stainless Steel Tube
Typical Design for Single Layer
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) |
24 |
11.9 |
504 |
82.3 |
46.8 |
| OPGW-70(54.0;8.4) |
24 |
11 |
432 |
70.1 |
33.9 |
| OPGW-80(84.6;46.7) |
48 |
12.1 |
514 |
84.6 |
46.7 |
Typical Design for Double Layer
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) |
36 |
15.9 |
617 |
87.9 |
176.9 |
OPGW Typical Designs of Central Stainless Steel Loose Tube
Typical design for Single Layer:
| Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS (KN) |
Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) |
12 |
7.8 |
243 |
40.6 |
4.7 |
| OPGW-42(54.0;8.4) |
24 |
9 |
313 |
54 |
8.4 |
| OPGW-42(43.5;10.6) |
24 |
9 |
284 |
43.5 |
10.6 |
| OPGW-54(55.9;17.5) |
36 |
10.2 |
394 |
67.8 |
13.9 |
| OPGW-61(73.7;175) |
48 |
10.8 |
438 |
73.7 |
17.5 |
| OPGW-61(55.1;24.5) |
48 |
10.8 |
358 |
55.1 |
24.5 |
| OPGW-68(80.8;21.7) |
54 |
11.4 |
485 |
80.8 |
21.7 |
| OPGW-75(54.5;41.7) |
60 |
12 |
459 |
63 |
36.3 |
| OPGW-76(54.5;41.7) |
60 |
12 |
385 |
54.5 |
41.7 |
Typical design for Double Layer:
| Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS (KN) |
Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) |
12 |
13 |
671 |
121.7 |
42.2 |
| OPGW-127(141.0;87.9) |
24 |
15 |
825 |
141 |
87.9 |
| OPGW-127(77.8;128.0) |
24 |
15 |
547 |
77.8 |
128 |
| OPGW-145(121.0;132.2) |
28 |
16 |
857 |
121 |
132.2 |
| OPGW-163(138.2;183.6) |
36 |
17 |
910 |
138.2 |
186.3 |
| OPGW-163(99.9;213.7) |
36 |
17 |
694 |
99.9 |
213.7 |
| OPGW-183(109.7;268.7) |
48 |
18 |
775 |
109.7 |
268.7 |
| OPGW-183(118.4;261.6) |
48 |
18 |
895 |
118.4 |
261.6 |
