60 Core ADSS Fiber Optic Cable Double Jacket G652D Aerial Cable
Product Introduction:

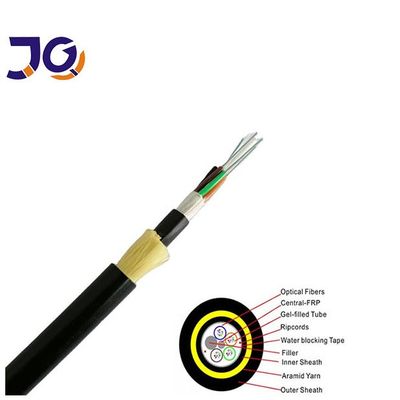

60 core ADSS fiber optic cable features a loose tube stranded structure with FRP strength member and double jacket design, providing reliable performance for long-span aerial installations.
Key Features:
Applications:
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Data
|
Span : 100m |
Cable type |
60core Double Jacket ADSS |
|
structural parameter |
Central strength components : FRP |
Diameter : 2.1mm |
|
Loose tube (jelly filled ) |
Outer diameter :1.8mm |
|
|
Inner sheath PE |
Thickness : 0.9mm |
|
|
outer sheath PE |
Thickness :1.8mm |
|
|
Technical parameter |
outer diameter of Cable |
12.3mm |
|
cable cross-sectional area |
95.03 mm2 |
|
|
Fiber model |
G.652D |
|
|
Weight of cable |
150kg/km |
|
|
Rated tensile strength (RTS) |
10 kn |
|
|
Minmum allowed tension(MAT) |
4kn |
|
|
EDS |
3.2kn |
|
|
E-modulus |
12.1 kn/mm2 |
|
|
Coefficient of thermal expansion |
1.9 10-6/°C |
|
|
Cruss resistance |
Long term :1100 n/100mm |
|
|
short term:2200 n/100mm |
||
|
Permission bent radius |
Long term (when running) 220 mm |
|
|
Short term (when laying) 360 mm |
Structure and Technical Specifications ADSS-DJ(50-500m Span)
|
Ref.Outer Diameter (mm) |
Ref.Weight kg/km) |
Rec.DailyMax. Working Tension(kN) |
Max Allowable Working Tension [kN) |
Break Strength (kN) |
Strength Member CSA. (kN/mm2) |
Modulusof Elasticity CSA kNmm2)[ |
Heat Expansion Coefficient (X10-6/K) |
SuitableSpan Meter ABICP |
||||
|
PE |
AT |
|
||||||||||
|
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
|
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
|
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
|
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
|
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
|
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
|
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
|
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
|
15.5 |
190 |
204 |
9.0 |
26 |
|60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
