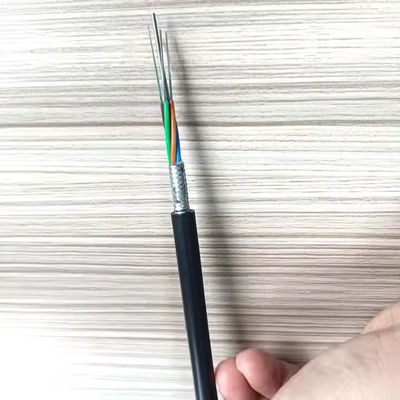

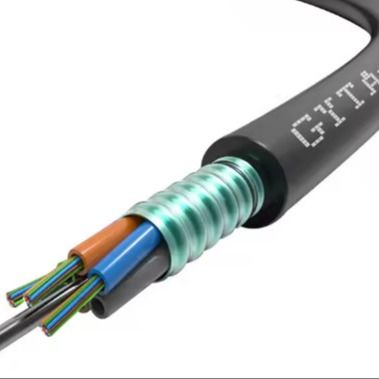

Stranded loose tube structure provides stable fiber protection
PSP aluminum tape armor enhances moisture blocking and crush resistance
Water blocking filling compound ensures excellent watertight performance
High strength central strength member improves mechanical reliability
PE outer sheath offers UV resistance and long term outdoor durability
Suitable for single mode and multimode fibers
Outdoor duct installation in backbone and access networks
Aerial installation for metropolitan and long distance communication lines
Telecom broadband and data transmission systems
Communication infrastructure projects requiring high reliability
Product Description
| Fiber Count | 6 | 12 | 24 | 32 | 48 | 72 |
| Cable Diameter (mm) | 8.8 | 8.8 | 9.0 | 9.0 | 9.0 | 9.2 |
| Tolerance Range (mm) | ±0.2, or customized | |||||
| Cable Weight (kgs/km) | 75 | 75 | 75 | 75 | 75 | 75 |
| Loose tube Diameter(mm) | 1.6 or 2.0 | |||||
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Mechanical Characteristic
| Tensile (N) | Long term | 600 |
| Short term | 1500 | |
| Crush (N/100mm) | Long term | 300 |
| Short term | 1000 | |
| Min. Bending radius (D=Cable diameter) | Dynamic | 20xD |
| Static | 10xD | |
| Temperature Range (℃) | -20~+70 | |
Application
Suitable for external application in duct and aerial
1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in fiber optic cable production. Our factory is located in Guangzhou, China.
2. What fiber types are available for GYTA cable?
GYTA cables support single mode (G652D, G657A1/A2) and multimode (OM1, OM2, OM3, OM4) fibers.
3. What is the typical fiber core count?
Common core counts include 2–144 cores. Custom fiber counts are available upon request.
4. Is the GYTA cable suitable for outdoor installation?
Yes. GYTA cable is designed for outdoor duct and aerial installations with excellent moisture resistance and mechanical strength.
5. How does the cable protect against water ingress?
The cable uses water blocking compounds and aluminum tape (PSP/APL) to ensure reliable waterproof performance.
