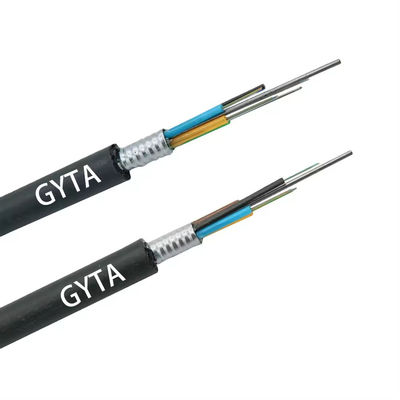

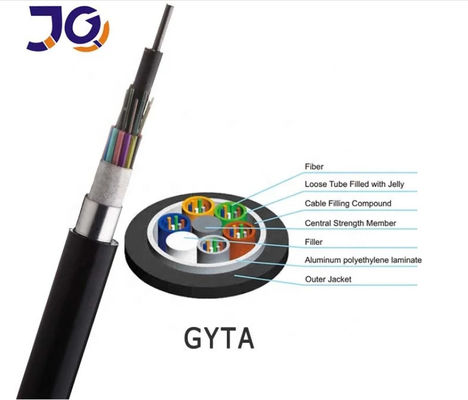

Colored G652D fibers housed in high-modulus PBT loose tubes for stable transmission and long service life.
Stranded loose-tube design ensures excellent mechanical strength and resistance to vibration and bending.
APL (Aluminum Polyethylene Laminate) armored cable core provides strong moisture-blocking and environmental protection.
Central steel wire strength member delivers high tensile performance for duct, underground, and outdoor installations.
Full water-blocking structure with gel-filled tubes and core filling compound ensures superior waterproof and moisture resistance.
Durable PE outer jacket offers UV resistance, abrasion resistance, and long-term outdoor reliability.
Ideal for duct, pipeline, underground, and long-distance communication networks.
Product Description
Other Models Available(Single/Double Jacket)
| Fiber Count | 6 | 12 | 24 | 32 | 48 | 72 |
| Cable Diameter (mm) | 8.8 | 8.8 | 9.0 | 9.0 | 9.0 | 9.2 |
| Tolerance Range (mm) | ±0.2, or customized | |||||
| Cable Weight (kgs/km) | 75 | 75 | 75 | 75 | 75 | 75 |
| Loose tube Diameter(mm) | 1.6 or 2.0 | |||||
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Mechanical Characteristic
| Tensile (N) | Long term | 600 |
| Short term | 1500 | |
| Crush (N/100mm) | Long term | 300 |
| Short term | 1000 | |
| Min. Bending radius (D=Cable diameter) | Dynamic | 20xD |
| Static | 10xD | |
| Temperature Range (℃) | -20~+70 | |
Application
Suitable for external application in duct and aerial
