GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use

จำนวนสั่งซื้อขั้นต่ำ : 1km ราคา : 60-200USD/KM
รายละเอียดการบรรจุ : กลองไม้ เวลาการส่งมอบ : 3-5 วันขึ้นอยู่กับปริมาณของคุณ
เงื่อนไขการชำระเงิน : L/C, D/A, T/T, Western Union, MoneyGram สามารถในการผลิต : 60000km/เดือน
สถานที่กำเนิด: กวางตุ้ง จีน ชื่อแบรนด์: Jiqian/Customize
ได้รับการรับรอง: CE/ISO9001/RoHS/FCC หมายเลขรุ่น: Gyxtw

ข้อมูลรายละเอียด

จำนวนไฟเบอร์: 2-24คอร์ สมาชิกแข็งแกร่ง: สายเหล็ก
โอม: ใช่ ติดอาวุธ: ใช่
โรงงาน: ใช่ การก่อสร้าง: ท่อหลวม
ไม่มีแกนกลาง: 24 คู่ ฝัก: HDPE/LSZH/MDPE/PE
เน้น:

armored single mode fiber optic cable

,

aerial duct fiber optic cable

,

outdoor armored fiber cable

รายละเอียดสินค้า

Product Description

Product Features / Characteristics

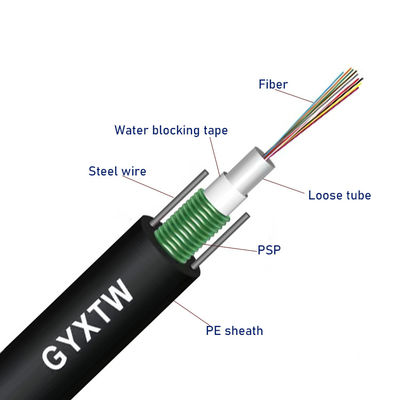

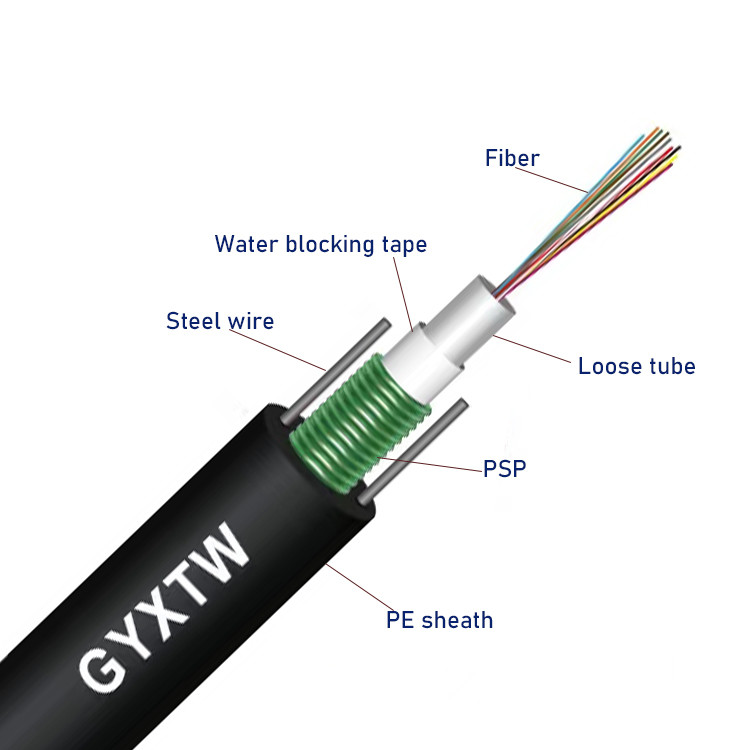

  • Steel Wire Strength Member:Parallel steel wire provides excellent tensile strength and extra protection to the optical fibers.

  • Tube and Tape Armored Structure:Central loose tube safeguards the fibers, while the tape-armored layer increases resistance to impact and crushing.

  • High Mechanical & Environmental Reliability:Engineered to deliver stable performance under harsh outdoor conditions.

  • Compact & Lightweight Design:Easy to handle, transport, and install, reducing labor and installation costs.

  • Quick and Simple Installation:Designed for fast deployment in aerial and duct installation projects.


Operating Temperature

  • -40°C to +60°C
    Suitable for a wide range of climate conditions, ensuring long-term stability and reliability.


Application

  • Designed for outdoor fiber optic distribution systems.

  • Ideal for aerial installation (self-supporting or with messenger wire) and pipeline/duct installation.

  • Applicable for long-distance communication networks, FTTx projects, backbone transmission, and LAN/WAN systems.

PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black



GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use 0
GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use 1
FAQ

Q1: Are you a factory or trading company?
A1: We are a factory.

Q2: What is your MOQ?
A2: The MOQ for fiber optic cables is 1 km.

Q3: Which fiber brands do you use?
A3: Corning, YOFC, FiberHome, and other trusted brands.

Q4: Do you accept small orders?
A4: Yes, small orders are welcome. We support new and trial projects.

Q5: What is the delivery time?
A5: 5–7 days after order confirmation, depending on quantity.

Q6: Can you provide customized products or logos?
A6: Yes, OEM and customized logos are available.

Q7: What are your payment terms?
A7: T/T, L/C, or Western Union. 30% deposit, 70% before shipment.
