สายไฟเบอร์ออปติกแบบมีเกราะ GYTA53 - ฝังดินโดยตรง, สองชั้น, 4–144 คอร์
ชื่อผู้ติดต่อ : JQ CABLE
หมายเลขโทรศัพท์ : +8618122383351
วอทส์แอพพ์ : +8618122383351
จำนวนสั่งซื้อขั้นต่ำ : | 1km | รายละเอียดการบรรจุ : | กลองไม้ |
---|---|---|---|
เวลาการส่งมอบ : | ปกติ 5-7 วันขึ้นอยู่กับปริมาณการสั่งซื้อ | เงื่อนไขการชำระเงิน : | L/C, T/T, Western Union, Alipay |
สามารถในการผลิต : | 4500KM ต่อเดือน |
สถานที่กำเนิด: | จีน | ชื่อแบรนด์: | Jiqian |
---|---|---|---|
ได้รับการรับรอง: | ISO 9001/CE/FCC/ | หมายเลขรุ่น: | กิ๊ฟตี้ |
ข้อมูลรายละเอียด |
|||
สถานที่กำเนิด: | กวางโจวจีน | ชื่อแบรนด์: | Jiqian |
---|---|---|---|
จำนวนตัวนำ: | ≥ 10 | สมาชิกแข็งแกร่ง: | FRP |
ผู้ผลิต: | ใช่ | อุณหภูมิการจัดเก็บ / การทำงาน:: | -40 ถึง +70 ° C |
ใบสมัคร: | ท่อ/ใต้ดิน | โอเอ็ม: | ใช่ |
ประเภทสายเคเบิล: | สายเคเบิลใยแก้วนำแสงแบบไดอิเล็กทริก | จำนวนไฟเบอร์: | 4-288 คอร์ |
เน้น: | underground fiber optic cable 144 core,aerial fiber optic cable GYFTY,48 core underground fiber cable |
รายละเอียดสินค้า

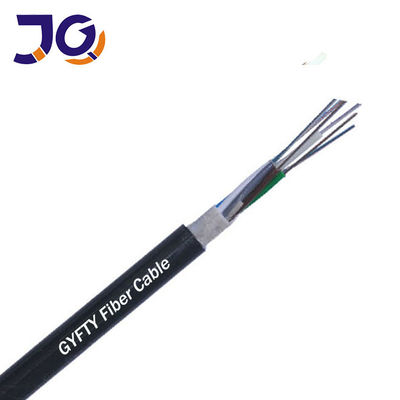

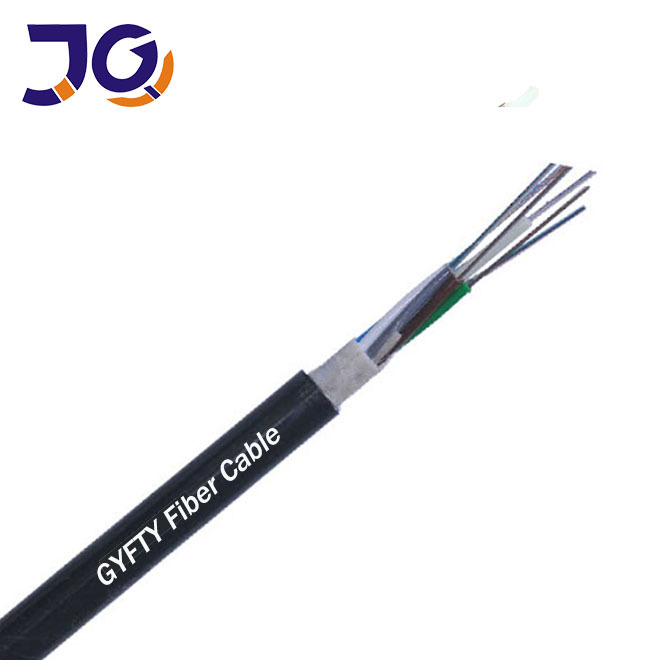

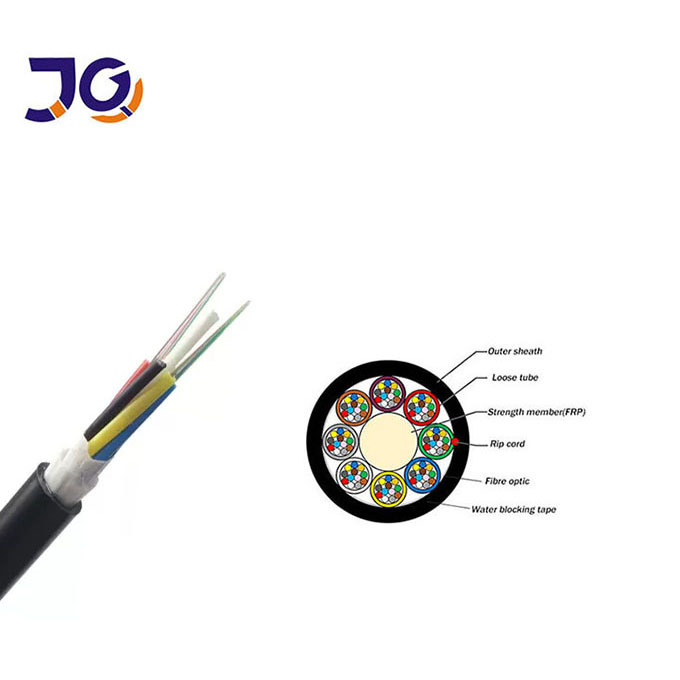

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY
Features:
Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
24 | 8.8 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
36 | 8.8 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
48 | 9.0 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
60 | 9.2 | 75 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
72 | 9.5 | 75 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
96 | 11.0 | 103 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
144 | 13.8 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
Fiber Properties
The properties of single mode optical fiber (ITU-T Rec. G.652D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.35 dB/km ≤0.32 dB/km ≤0.21 dB/km ≤0.30 dB/km |
Point discontinuity | ≤ 0.05 dB |
Cable cut-off wavelength | ≤ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | ≤0.093 ps/(nm².km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
PMD | ≤0.2 ps/km½ |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | ≤0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | ≤1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
Packing & shipping:

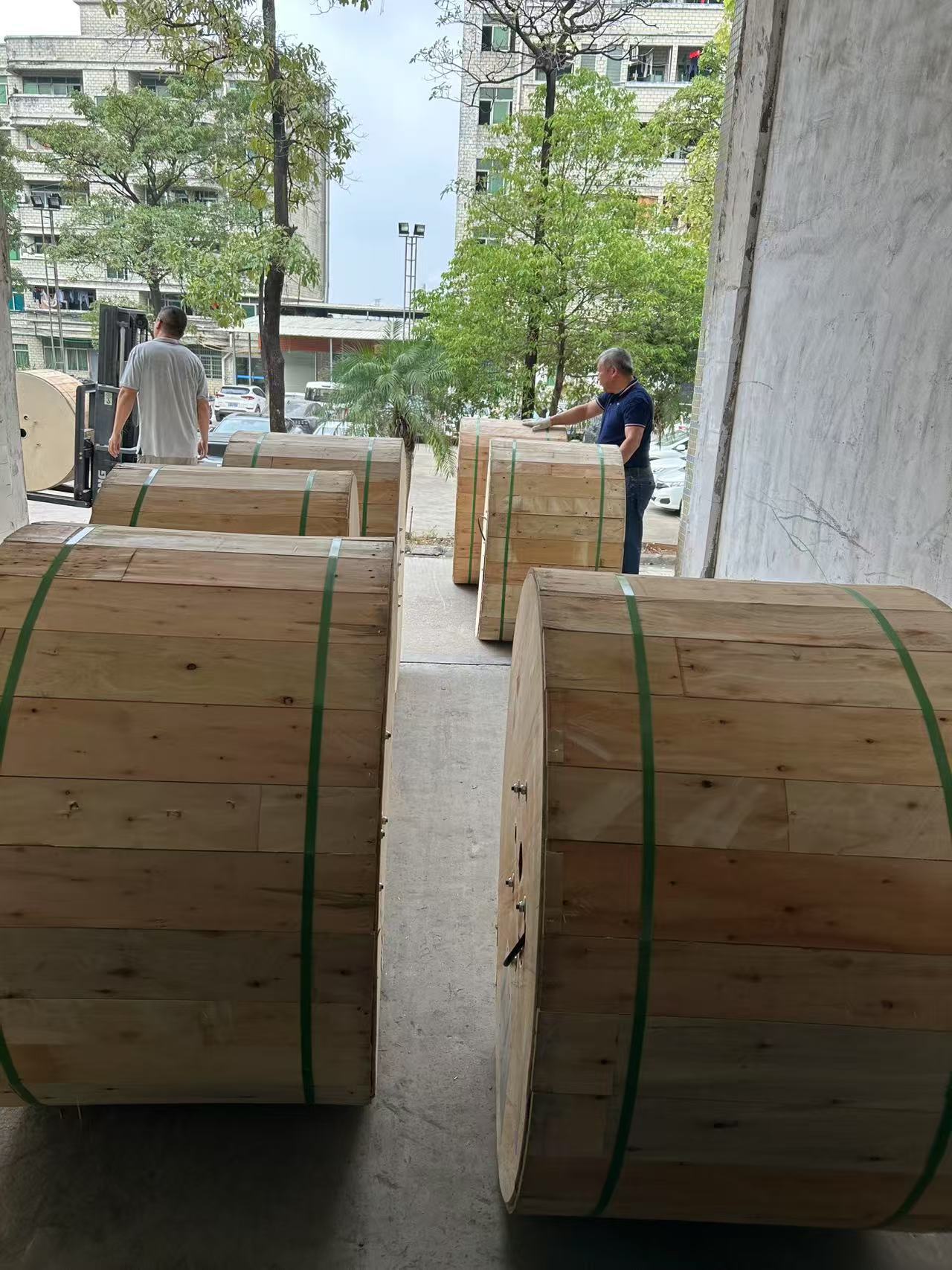

Packing:Plywood 3/4/5 drum
Shipping:by sea/road
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition:
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 12years history.
2.What is your fiber brand ?
YOFC/Fiberhome
