Indoor FTTH Fiber Optic Drop Cable – G657A2 Single Mode, 1/2 Core, 3.0mm, LSZH, High Strength for Home Network
ชื่อผู้ติดต่อ : JQ CABLE
หมายเลขโทรศัพท์ : +8618122383351
วอทส์แอพพ์ : +8618122383351
จำนวนสั่งซื้อขั้นต่ำ : | 10 กม | รายละเอียดการบรรจุ : | 1/2/3/4/5 กม. ในกลองไม้เดียว |
---|---|---|---|
เวลาการส่งมอบ : | 6 สี | เงื่อนไขการชำระเงิน : | L/C, T/T, Western Union |
สามารถในการผลิต : | 600 กม. ต่อวัน |
สถานที่กำเนิด: | กวางตุ้งจีน | ชื่อแบรนด์: | JQ/OEM/Customize |
---|---|---|---|
ได้รับการรับรอง: | ISO9001/CE/ROHS | หมายเลขรุ่น: | GJXH/จีเจเอ็กซ์เอช |
ข้อมูลรายละเอียด |
|||
วัสดุแจ็คเก็ต: | LSZH (ฮาโลเจนไร้ควันต่ำ) | เส้นผ่าศูนย์กลางด้านนอก: | 2.0*3.0 มม./2.0*5.0 มม |
---|---|---|---|
ลวดเหล็กกล้า/FRP: | 2*0.5 มม./2*0.45 มม | สี: | ขาวดำ |
ประเภทไฟเบอร์: | G657A1/G657A2/G652D | จำนวนไฟเบอร์: | 2/4/6/8/12 แกน |
การติดตั้ง: | FTTH ในร่มและกลางแจ้ง | แบรนด์ไฟเบอร์: | คอร์นนิ่ง/ฟูจิคารุ |
ตัวอย่างฟรี: | ใช้ได้ | โอเอ็ม: | ใช้ได้ |
สี: | ดำหรือขาว | การรับประกัน: | 15 ปี |
จำนวนไฟเบอร์: | 1/2/4 แกน | สมาชิกแรง: | FRP / ลวดเหล็ก |
สีของแจ็คเก็ต: | สีดํา/ขาว/สีตามความต้องการ | เวลารับประกัน: | 30 ปี |
หมายเลขหลัก: | 1-12 | รัศมีการดัด: | 10 มม. |
การเคลือบสายเชื่อม: | ยูพีซี | ผู้สื่อสาร: | สายเหล็กสองเส้นขนานหรือ FRP |
วัสดุแจ็คเก็ต: | LSZH | ขนาด: | 2.0มม.*3.0มม |
ประเภทตัวเชื่อมต่อ: | วท./อพ | แรงดึง: | 100N |
เน้น: | FTTH fiber optic drop cable LSZH jacket,outdoor indoor FTTX fiber optic cable,G657A1 G657A2 messenger drop cable |
รายละเอียดสินค้า
Title
G657A1/G657A2 FTTH & FTTX Indoor/Outdoor Drop Fiber Optic Cable – GJXH / GJYXCH Types
Product Description
The GJXH and GJYXCH fiber optic drop cables are widely used in FTTH applications for both indoor and outdoor LAN cabling.
GJXH: Designed for indoor use, featuring two steel wires or FRP strength members for added durability.

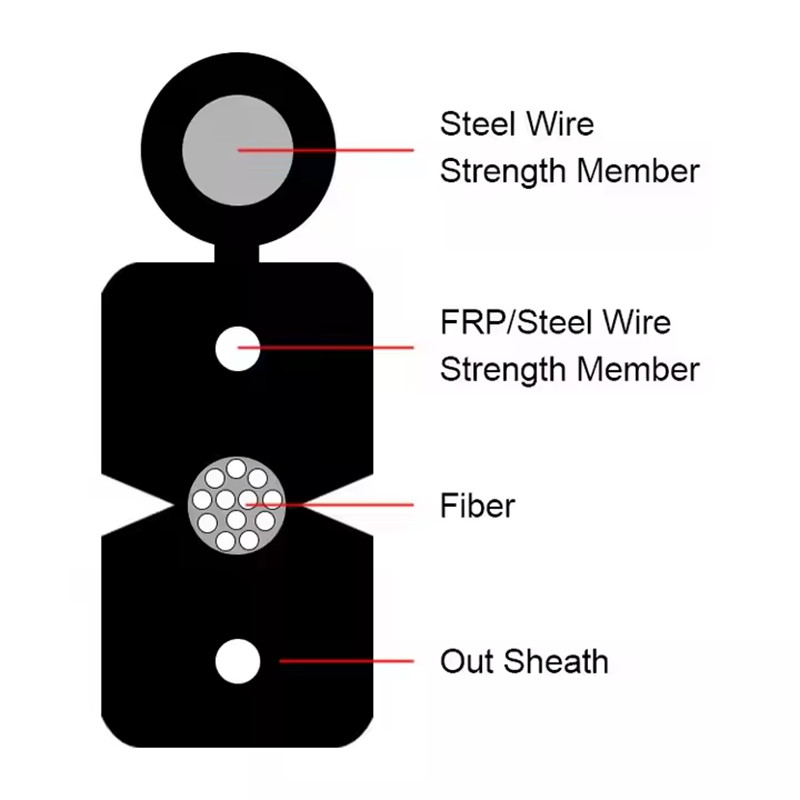

GJYXCH: Designed for outdoor use, featuring one messenger steel wire and two steel wire strength members for superior support and stability.
Both types deliver excellent transmission performance and are engineered for reliable, long-term operation.
Features
Low loss and high transmission performance
Available sizes: 2.0×5.0 mm, 2.0×3.0 mm, 2.5×6.0 mm
Strength member options: FRP, QFRP, GFRP, or steel wire
Fiber types: G657A1, G657A2, G657B3
Complies with IEC standards; ISO9001:2008, RoHS, CE certified
100% quality tested before shipment
Applications
FTTH networks for indoor and outdoor LAN and building cabling
Connections between instruments, terminal boxes, and communication equipment
Optical Characteristics
Items | Unit | Specification | |
G657a2 |
|||
Mode Field Diameter | 1310nm | um | 8.6±0.4 |
1550nm | um | 9.5±0.5 | |
Cladding Diameter | um | 125±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.35 |
1550nm | dBkm | ≤0.21 |
Cable Parameters
Items | Specifications | |
Fiber Count | 2~12 | |
Colored Coating Fiber | Dimension | 250μm+15μm |
Color | blue /orange | |
Strength Member | Diameter | 0.45mm/0.5mm |
Material | Steel/FRP | |
Outer Jacket | Dimension | 2.0*3.0mm/2.0*5.0mm/2.7*6.5mm |
Material | LSZH ( Low smoke zero halogen) | |
Color | Black/white |
Technical Parameters
Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
2~4 | 2.0*3.0 | 9.5 | 300/600 | 1000/2200 | 10D/20D |
6-12 | 2.7*6.5 | 11 | 300/600 | 1000/2200 | 10D/20D |
details pictures showes
indoor drop cable

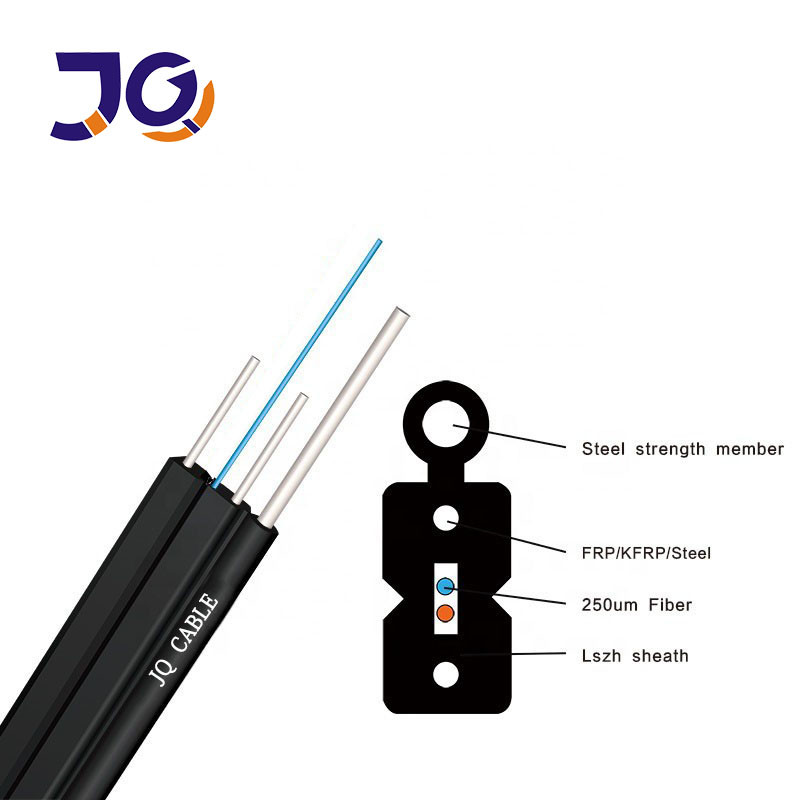

outdoor drop cable
loose tube outdoor drop cable
drop cable package
package in the box
package in the pallets
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with 12 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China. Welcome to visit us!
2. How is your product quality?
All fibers are 100% tested before delivery. After price confirmation, free samples are available for quality evaluation.
3. Do you accept small orders?
Yes, we welcome small orders and support new projects, as we understand business often starts small.
4. What is your delivery time?
Typically 3–7 working days, depending on order quantity. We will arrange shipment as soon as payment is received.
5. Do you provide OEM services?
Yes, OEM is available. We can print your logo on the products, and custom designs are welcome.
